Power Quality Meters

Features:

●  Accuracy class – Class 1.0, Optional Class 0.5S and Class 0.2S

●  THD, TOHD, TEHD, TDF, TODF, TEDF, Crest Factor, K-factor, TDD

●  Individual harmonics upto 63rd order, 1Sec update

●  Harmonics magnitude, Angle upto 63rd order, 1Sec update

●  Max Harmonics % upto 63rd order and Worst harmonics

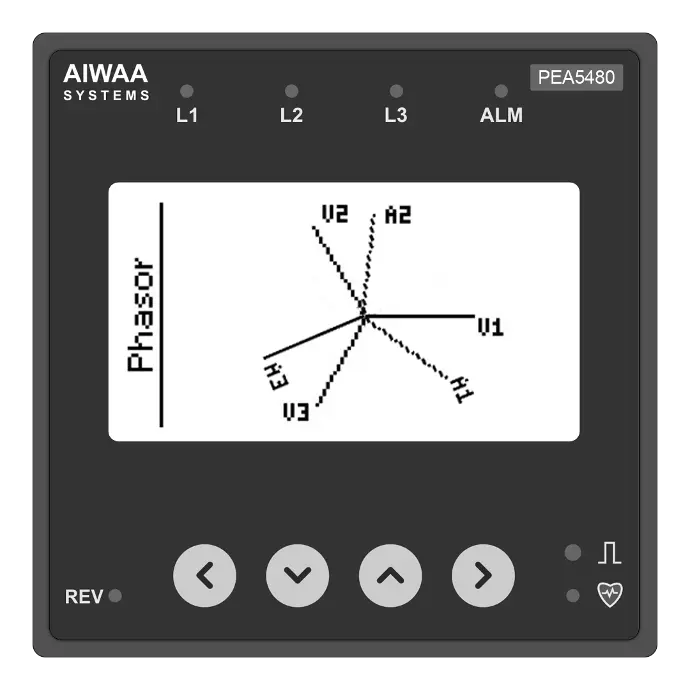

●  Phasor Diagram for Voltage and Current

●  Phasor Diagram for Symmetrical Components

●  Sag swell Detection

●  Waveform Capture and Log

●  RTC - GMT offset, Daylight saving

●  TOD - 8 tariffs

​●  Data log - 2MB memory, Up to 12 parameters and Interval time



●  Demand - Last, Present, Predictive, Max demand

    Max demand time stamp - 1 sec update

●  2 DO, 2DI, 2RO

●  16 Alarms Parameter, over/under alarms

●  Multi Source Energy or Input metering selectable

●  Digital Pulse Output energy

●  Month wise energy and Max Demand with DT for 13 months

●  Day wise energy and Max Demand with DT for 15 days

●  Peak hours and OFF-peak hours energy and Max Demand with DT

●  Incremental and Conditional - Energy energy & Max-Demand

●  Maximum Minimum Value with time stamp

●  Rate Values - Parameter, unit code configur

●  Cyber security: Editable password, Password lock


PEA5480

Prod. Code: PEA5480A5100100000

, Class 0.5S, MFM, RTC, TOD, Data log, Demand,  Mean High Low, Power Quality, KF, CF, TDD, Individual Harmonics %, Magnitude, Angle upto 63rd order, Phasor, 2DI, 2DO, 16 Alarms, Multi-source Energy, Input metering, DI control, Schedule control, RS485, Ethernet, BACnet

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5480

Prod. Code: PEA5480A2100100000

Class 0.2S, MFM, RTC, TOD, Data log, Demand,  Mean High Low, Power Quality, KF, CF, TDD, Individual Harmonics %, Magnitude, Angle upto 63rd order, Phasor, 2DI, 2DO, 16 Alarms, Multi-source Energy, Input metering, DI control, Schedule control, RS485, Ethernet, BACnet

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5482

Prod. Code: PEA5482A5100100000

Class 0.5S, MFM, RTC, TOD, Data log, Demand,  Mean High Low, Power Quality, KF, CF, TDD, Individual Harmonics %, Magnitude, Angle, Worst Harmonics, Max HArmonics upto 63rd order, Phasor, Zero, Positive, Negative sequence, Sag Swell, Waveform Capture, 2DI, 2DO, 16 Alarms, Multi-source Energy, Input metering, DI control, Schedule control, RS485, Ethernet, BACnet

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5482

Prod. Code: PEA5482A2100100000

Class 0.2S, MFM, RTC, TOD, Data log, Demand,  Mean High Low, Power Quality, KF, CF, TDD, Individual Harmonics %, Magnitude, Angle, Worst Harmonics, Max HArmonics upto 63rd order, Phasor, Zero, Positive, Negative sequence, Sag Swell, Waveform Capture, 2DI, 2DO, 16 Alarms, Multi-source Energy, Input metering, DI control, Schedule control, RS485, Ethernet, BACnet

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5486

Prod. Code: PEA5486A2100100000

Class 0.5S, MFM, RTC, TOD, Data log, Demand,  Mean High Low, Power Quality, KF, CF, TDD, Individual Harmonics %, Magnitude, Angle, Worst Harmonics, Max HArmonics upto 63rd order, Phasor, Zero, Positive, Negative sequence, Sag Swell, Waveform Capture, 2DI, 2DO, 2RO, 16 Alarms, Multi-source Energy, Input metering, DI control, Schedule control, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5486

Prod. Code: PEA5486A2100100000

Class 0.2S, MFM, RTC, TOD, Data log, Demand,  Mean High Low, Power Quality, KF, CF, TDD, Individual Harmonics %, Magnitude, Angle, Worst Harmonics, Max HArmonics upto 63rd order, Phasor, Zero, Positive, Negative sequence, Sag Swell, Waveform Capture, 2DI, 2DO, 2RO, 16 Alarms, Multi-source Energy, Input metering, DI control, Schedule control, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide
