Basic Digital Meter

Performance and design were the key words during the conception of this super car. No compromises were made to keep the pleasure of driving despite those constraints.

Take advantage of a free track trial to discover it.


Data Sheet    User Manual    Installation Guide




Features:

●  Accuracy class – Class 1.0, Optional Class 0.5 and Class 0.2

●  Wide Current measurement range 5mA to 7500 mA​

●  Wide Voltage measurement range 20 – 300 VLn / 35 to 520 VLL

●  Wide range of baud rate 1200 to 57600 bps

●  VLL VLN A PF Phase wise and average

● Power:  W VA VAR  Phase sie and total

● Run hours, On hours, Feeder on hours, Power Interruptions

●  Line status indicator for Voltage  or Current

●  Easy Installation

●  Plug in terminal connectors

●  Safety terminal covers

●  Auto Scrolling enable and disable

●  Auto Exit from setup and Reset

●  Fast Scrolling

●  Cyber security: Editable password, Password lock

●  Diagnostic Information

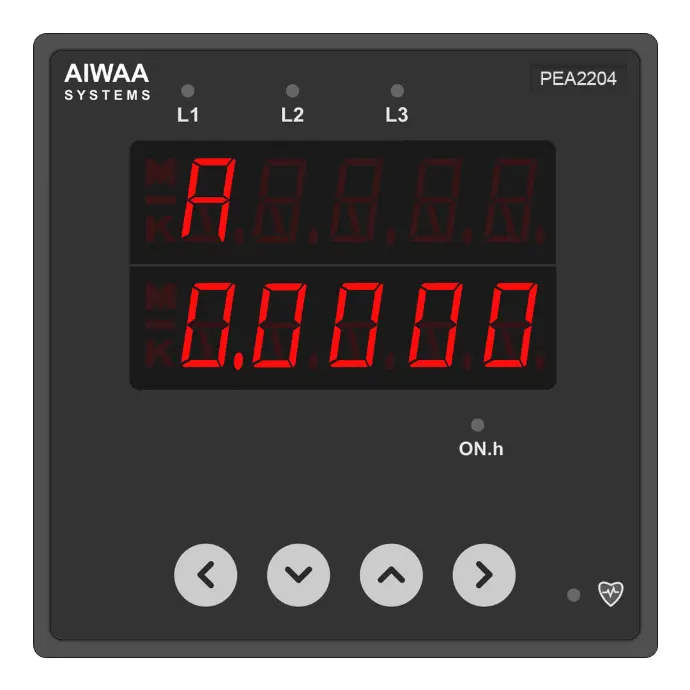

PEA2204

Prod. Code: PEA2204A0100100000

Class 1.0, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual  Installation Guide

PEA2204

Prod. Code: PEA2204A5100100000

Class 0.5S, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA2204

Prod. Code: PEA2204A2100100000

Class 0.2S, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual  Installation Guide

PEA2208

Prod. Code: PEA2208A50100100000

Class 1.0, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA2208

Prod. Code: PEA2204A2100100000

Class 0.5S, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual  Installation Guide

PEA2208

Prod. Code: PEA2204A2100100000

Class 0.2S, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA2304

Prod. Code: PEA2204A2100100000

Class 1.0, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc



Data Sheet   User Manual  Installation Guide

PEA2304

Prod. Code: PEA2204A2100100000

Class 0.5S, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA2304

Prod. Code: PEA2204A2100100000

Class 0.2S, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc



Data Sheet   User Manual  Installation Guide

PEA2308

Prod. Code: PEA2204A2100100000

Class 1.0, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA2308

Prod. Code: PEA2204A2100100000

Class 0.5S, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual  Installation Guide

PEA2308

Prod. Code: PEA2204A2100100000

Class 0.2S, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA2404

Prod. Code: PEA2204A2100100000

Class 1.0, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc



Data Sheet   User Manual  Installation Guide

PEA2404

Prod. Code: PEA2204A2100100000

Class 0.5S, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA2404

Prod. Code: PEA2204A2100100000

Class 0.2S, Three phase VAF PF, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc



Data Sheet   User Manual  Installation Guide

PEA2408

Prod. Code: PEA2204A2100100000

Class 1.0, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA2408

Prod. Code: PEA2204A2100100000

Class 0.5S, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual  Installation Guide

PEA2408

Prod. Code: PEA2204A2100100000

Class 0.2S, Three phase VAF PF, Power, unbalance V&A, RPM, Phase angle, Run hours, on hours, Interruptions,  RS485

Aux: 80-300 Vac/100 to 300 Vdc
