Dual Source Energy Meter
![](/web/image/2136-cf042620/PEA2261-SLAND.webp)
![](/web/image/2138-163ebbab/PEA2366-SLAND.webp)
Basic Meter Features:
● Accuracy class – Class 1.0, Optional Class 0.5 and Class 0.2
● Easy Installation
● Wide Current measurement range 5mA to 7500 mA
● Plug in terminal connectors
● Wide Voltage measurement range 20 – 300 VLn / 35 to 520 VLL
● Safety terminal covers
● Diagnostic Information
● Wide range of baud rate 1200 to 57600 bps
● Auto Scrolling enable and disable
● VLL VLN A PF Phase wise and average
● Auto Exit from setup and Reset
● W VA VAR Phase sie and total
● Line status indicator for Voltage or Current
● Cyber security: Editable password, Password lock
![](/web/image/2015-b7122d2f/PEA2261.webp)
PEA2261
Prod. Code: PEA2261P1100100100
Class 1.0, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2015-b7122d2f/PEA2261.webp)
PEA2261
Prod. Code: PEA2261P3100100100
Class 0.5S, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2015-b7122d2f/PEA2261.webp)
PEA2261
Prod. Code: PEA2261P5100100100
Class 0.2S, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2017-2c6dfcc2/PEA2263.webp)
PEA2263
Prod. Code: PEA2263P1100100100
Class 1.0, Dual MFM, Phase Energy, Permanent Energy, Old Energy, Timer Counters, THD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2015-b7122d2f/PEA2261.webp)
PEA2263
Prod. Code: PEA2263P3100100100
Class 0.5S, Dual MFM, Phase Energy, Permanent Energy, Old Energy, Timer Counters, THD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2015-b7122d2f/PEA2261.webp)
PEA2263
Prod. Code: PEA2263P5100100100
Class 0.2S, Dual MFM, Phase Energy, Permanent Energy, Old Energy, Timer Counters, THD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2020-b7be4735/PEA2265.webp)
PEA2265
Prod. Code: PEA2265P1100100100
Class 1.0, Dual MFM, Phase wise Energy, Permanent Energy, OLD Energy, Demand, Timer Counters, THD, 5A inbuilt, RS485
Aux: 80-300 Vac/100 to 300 Vdc
Data Sheet User Manual Installation Guide
![](/web/image/2015-b7122d2f/PEA2261.webp)
PEA2265
Prod. Code: PEA2265P3100100100
Class 0.5S, Dual MFM, Phase wise Energy, Permanent Energy, OLD Energy, Demand, Timer Counters, THD, 5A inbuilt, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2015-b7122d2f/PEA2261.webp)
PEA2265
Prod. Code: PEA2265P5100100100
Class 0.2S, Dual MFM, Phase wise Energy, Permanent Energy, OLD Energy, Demand, Timer Counters, THD, 5A inbuilt, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide

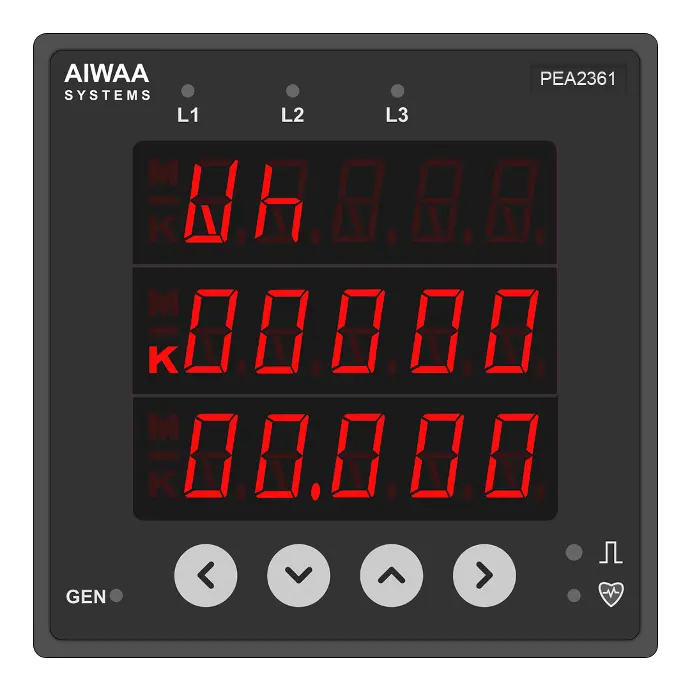

![](/web/image/2033-8b324642/PEA2361.webp)
PEA2361
Prod. Code: PEA2361P1100100100
Class 1.0, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 Vac/100 to 300 Vdc
Data Sheet User Manual Installation Guide
![](/web/image/2033-8b324642/PEA2361.webp)
PEA2361
Prod. Code: PEA2361P3100100100
Class 0.5S, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 Vac/100 to 300 Vdc
Data Sheet User Manual Installation Guide
![](/web/image/2033-8b324642/PEA2361.webp)
PEA2361
Prod. Code: PEA2361P5100100100
Class 0.2S, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 Vac/100 to 300 Vdc
Data Sheet User Manual Installation Guide
![](/web/image/2031-0856cd47/PEA2366.webp)
PEA2364
Prod. Code: PEA2364P1100100100
Class 1.0, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2032-5ab1f88e/PEA2365.webp)
PEA2364
Prod. Code: PEA2364P3100100100
Class 0.5S, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2032-5ab1f88e/PEA2365.webp)
PEA2364
Prod. Code: PEA2364P5100100100
Class 0.2S, Dual MFM, Phase Energy, Permanent Energy, Rate Values, THD, TOHD, TEHD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2032-5ab1f88e/PEA2365.webp)
PEA2365
Prod. Code: PEA2365P1100100100
Class 1.0, Dual MFM, Basic, Energy, Phase wise Energy, Permanent Energy, Demand, Rate Values, THD, TOHD, TEHD, Old Energy & MD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2031-0856cd47/PEA2366.webp)
PEA2365
Prod. Code: PEA2365P3100100100
Class 0.5S, Dual MFM, Basic, Energy, Phase wise Energy, Permanent Energy, Demand, Rate Values, THD, TOHD, TEHD, Old Energy & MD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2031-0856cd47/PEA2366.webp)
PEA2365
Prod. Code: PEA2365P5100100100
Class 0.2S, Dual MFM, Basic, Energy, Phase wise Energy, Permanent Energy, Demand, Rate Values, THD, TOHD, TEHD, Old Energy & MD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2036-16805eb4/PEA2368.webp)
PEA2368
Prod. Code: PEA2368P1100100102
Class 1.0, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, Max/Min, Individual Harmonics upto 15th order, 2RO, Alarms, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2036-16805eb4/PEA2368.webp)
PEA2368
Prod. Code: PEA2368P3100100102
Class 0.5S, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, Max/Min, Individual Harmonics upto 15th order, 2RO, Alarms, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/2036-16805eb4/PEA2368.webp)
PEA2368
Prod. Code: PEA2368P5100100102
Class 0.2S, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, Max/Min, Individual Harmonics upto 15th order, 2RO, Alarms, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1870-d937c0ef/PEA%202461.webp)
PEA2461
Prod. Code: PEA2461P1100100100
Class 1.0, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 Vac/100 to 300 Vdc
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1870-d937c0ef/PEA%202461.webp)
PEA2461
Prod. Code: PEA2461P3100100100
Class 0.5S, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 Vac/100 to 300 Vdc
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1870-d937c0ef/PEA%202461.webp)
PEA2461
Prod. Code: PEA2361P5100100100
Class 0.2S, VAF, PF, kW kWh kVA kVAh ( EB & DG), Phase Energy, Permanent Energy and Old Energy, Timer Counters, RS485
Aux: 80-300 Vac/100 to 300 Vdc
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1873-6d29f9e6/PEA%202464.webp)
PEA2464
Prod. Code: PEA2464P1100100100
Class 1.0, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1873-6d29f9e6/PEA%202464.webp)
PEA2464
Prod. Code: PEA2464P3100100100
Class 0.5S, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1873-6d29f9e6/PEA%202464.webp)
PEA2464
Prod. Code: PEA2464P5100100100
Class 0.2S, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1875-79eba4b0/PEA%202466.webp)
PEA2465
Prod. Code: PEA2465P1100100100
Class 1.0, Dual MFM, Basic, Energy, Phase Energy, Permanent Energy, Demand, Rate Values, THD, TOHD, TEHD, Old Energy & MD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1875-79eba4b0/PEA%202466.webp)
PEA2465
Prod. Code: PEA2465P3100100100
Class 0.5S, Dual MFM, Basic, Energy, Phase Energy, Permanent Energy, Demand, Rate Values, THD, TOHD, TEHD, Old Energy & MD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1875-79eba4b0/PEA%202466.webp)
PEA2465
Prod. Code: PEA2465P5100100100
Class 0.2S, Dual MFM, Basic, Energy, Phase Energy, Permanent Energy, Demand, Rate Values, THD, TOHD, TEHD, Old Energy & MD, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1878-74abac8e/PEA%202468.webp)
PEA2468
Prod. Code: PEA2468P1100100102
Class 1.0, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, Max/Min, Individual Harmonics upto 15th order, 2RO, Alarms, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1878-74abac8e/PEA%202468.webp)
PEA2468
Prod. Code: PEA2468P3100100102
Class 0.5S, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, Max/Min, Individual Harmonics upto 15th order, 2RO, Alarms, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
![](/web/image/1878-74abac8e/PEA%202468.webp)
PEA2468
Prod. Code: PEA2468P5100100102
Class 0.2S, Dual MFM, Phase Energy, Permanent Energy, Rate Values,THD, TOHD, TEHD, Max/Min, Individual Harmonics upto 15th order, 2RO, Alarms, RS485
Aux: 80-300 ac/100 to 300 dc
Data Sheet User Manual Installation Guide
