Features:

●  Accuracy class – Class 1.0, Optional Class 0.5S and Class 0.2S

●  THD, TOHD, TEHD, TDF, TODF, TEDF, Crest Factor, K-factor, TDD

●  Individual harmonics upto 63rd order, 1Sec update

●  Phasor Diagram for Voltage and Current

●  RTC - GMT offset, Daylight saving

●  TOD - 8 tariffs

​●  Data log - 2MB memory, Up to 12 parameters and Interval time selectable

​●  2 DI, 2RO




●  Multi-source energy

●  Demand - Last, Present, Predictive, Max demand

    Max demand time stamp - 1 sec update

●  Month wise energy and Max Demand with DT for 13 months

●  Day wise energy and Max Demand with DT for 15 days

●  Maximum Minimum Value with time stamp

●  Rate Values - Parameter, unit code configur

●  Cyber security: Editable password, Password lock

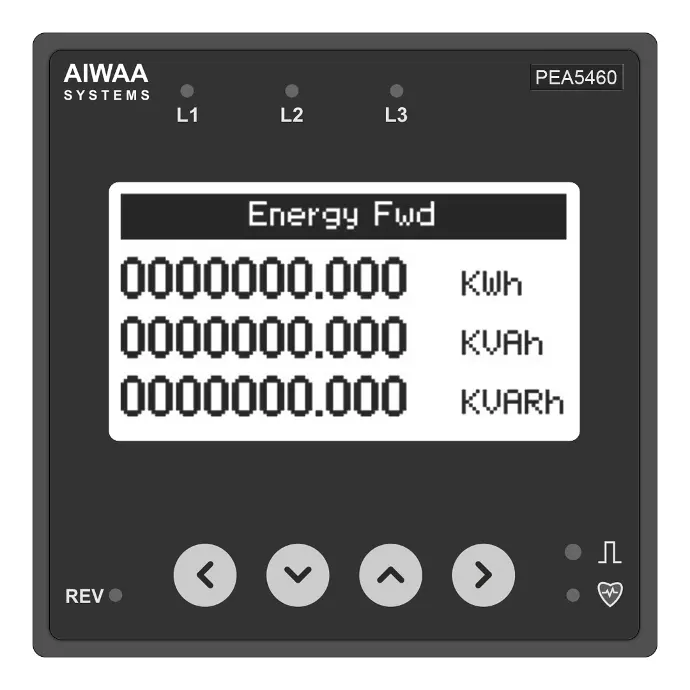

PEA5460

Prod. Code: PEA5460A5100100000

Class 0.5S, MFM, RTC, TOD/TOU Energy & Max Demand, Data log, Demand, Rate Values, Max/Min Values, Month wise and Day Energy & MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 63rd order, Phasor

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5460

Prod. Code: PEA5460A2100100000

Class 0.2S, MFM, RTC, TOD/TOU energy & Max Demand, Data log, Demand, Rate Values, Max/Min Values, Month wise and Day Energy & MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 63rd order, Phasor

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5464

Prod. Code: PEA5464A5100100000

Class 0.5S, MFM, RTC, TOD/TOU Energy & Max Demand, Demand Control, Data log, Demand, Rate Values, Max/Min Values, Month wise and Day Energy & MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 63rd order, Phasor, 2DI, 2RO, Multi-source Energy

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5464

Prod. Code: PEA5464A2100100000

Class 0.2S, MFM, RTC, TOD/TOU Energy & Max Demand, Demand Control, Data log, Demand, Rate Values, Max/Min Values, Month wise and Day Energy & MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 63rd order, Phasor, 2DI, 2RO, Multi-source Energy

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide
