Multi Function with Input Output

Features:

●  Accuracy class – Class 1.0, Optional Class 0.5 and Class 0.2

●  Wide Current measurement range 5mA to 7500 mA

●  Wide Voltage measurement range 20 – 300 VLn / 35 to 520 VLL

●  Basic, Power and Energy Values

●  Power quality: THD, TOHD, TEHD and Individual harmonics upto 15th level

​●  Phase diagram for V & A

●  4 Rates Values - Parameter, Unit configurable

●  Demand (W, VA, VAR, A) and Max Demand Values

●  Favorite  parameter Page

●  Maximum Minimum Values for Instantaneous parameters

●  2 DI, 2DO, 2RO

●  Multi-source energy selectabe

●  4 Alarms - Parameter. Over/under and Time delay configurable

●  Energy Pulse output

●  Frequency read register configurable

●  Line status indicator for Voltage  or Current

●  Cyber security: Editable password, Password lock


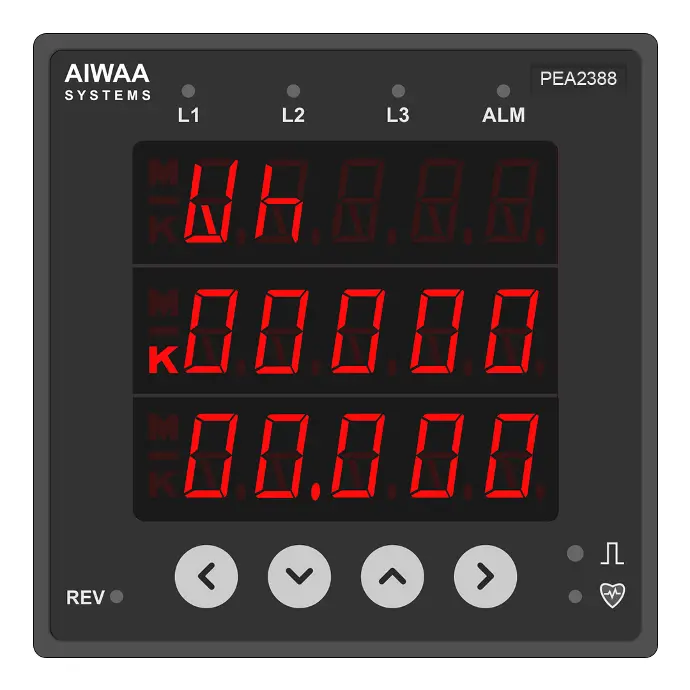

PEA2380

Prod. Code: PEA2380A0100100000

Class 1.0, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, Multi-Source energy

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2380

Prod. Code: PEA2380A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, Multi-Source energy

Aux: 80-300 ac/100 to 300 dc​


Data Sheet   User Manual   Installation Guide


PEA2380

Prod. Code: PEA2380A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, Multi-Source energy

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2382

Prod. Code: PEA2382A0100100000

Class 1.0, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DO, 4 Alarms, Energy pulse output

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2382

Prod. Code: PEA2382A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DO, 4 Alarms, Energy pulse output

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2382

Prod. Code: PEA2382A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DO, 4 Alarms, Energy pulse output

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide



PEA2384

Prod. Code: PEA2384A0100100000

Class 1.0, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, Multi-source energy, 4 Alarms, Energy pulse output, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide



PEA2384

Prod. Code: PEA2384A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, Multi-source energy, 4 Alarms, Energy pulse output, RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide



PEA2384

Prod. Code: PEA2384A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, Multi-source energy, 4 Alarms, Energy pulse output , RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2386

Prod. Code: PEA2386A0100100000

Class 1.0, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2RO, Multi-source energy, 4 Alarms, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide



PEA2386

Prod. Code: PEA2386A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2RO, Multi-source energy, 4 Alarms, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide


PEA2386

Prod. Code: PEA2386A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2RO, Multi-source energy, 4 Alarms, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide


PEA2388

Prod. Code: PEA2388A0100100000

Class 1.0, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2388

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2388

Prod. Code: PEA2388A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2480

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2480

Prod. Code: PEA2388A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2480

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2482

Prod. Code: PEA2388A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc



Data Sheet   User Manual   Installation Guide


PEA2482

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2482

Prod. Code: PEA2388A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2484

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2484

Prod. Code: PEA2388A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2484

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2486

Prod. Code: PEA2388A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc



Data Sheet   User Manual   Installation Guide


PEA2486

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2486

Prod. Code: PEA2388A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc



Data Sheet   User Manual   Installation Guide


PEA2488

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide


PEA2488

Prod. Code: PEA2388A2100100000

Class 0.2S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc



Data Sheet   User Manual   Installation Guide


PEA2488

Prod. Code: PEA2388A5100100000

Class 0.5S, MFM, THD, TEHD, TEHD, Harmonics up to 15th level, Phasor diagram for V & A, Rate values, Demand, Max/Min values, 2DI, 2DO, 2RO, Multi-source energy, 4 Alarms, Energy Pulse Output,RS485

Aux: 80-300 ac/100 to 300 dc


Data Sheet   User Manual   Installation Guide
