Features:

●  Accuracy class – Class 1.0, Optional Class 0.5 and Class 0.2

●  Easy Installation

●  Wide Current measurement range 5mA to 7500 mA

​●  Plug in terminal connectors

●  Wide Voltage measurement range 20 – 300 VLn / 35 to 520 VLL

●  Safety terminal covers

●  Diagnostic Information

●  Wide range of baud rate 1200 to 57600 bps

●  Auto Scrolling enable and disable

●  VLL VLN A PF Phase wise and average

●  Auto Exit from setup and Reset

●  W VA VAR  Phase sie and total

●  Line status indicator for Voltage  or Current

●  Cyber security: Editable password, Password lock


PEA3402

Prod. Code: PEA3402P1100100000

Class 1.0, MFM, RTC, Demand, Rate Values, Max/Min Values, THD, TOHD, TEHD,  Individual Harmonics upto 15th order, RS485


Data Sheet   User Manual   Installation Guide

PEA3402

Prod. Code: PEA3402P3100100000

Class 0.5S, MFM,  RTC, Demand, Rate Values, Max/Min Values, THD, TOHD, TEHD, Individual Harmonics upto 15th order, RS485

Aux: 80-300 Vac/100 to 300 Vdc​


Data Sheet   User Manual   Installation Guide

PEA3402

Prod. Code: PEA3402P5100100000

Class 0.2S, MFM, RTC, Demand, Rate Values, Max/Min Values, THD, TOHD, TEHD, Individual Harmonics upto 15th order, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

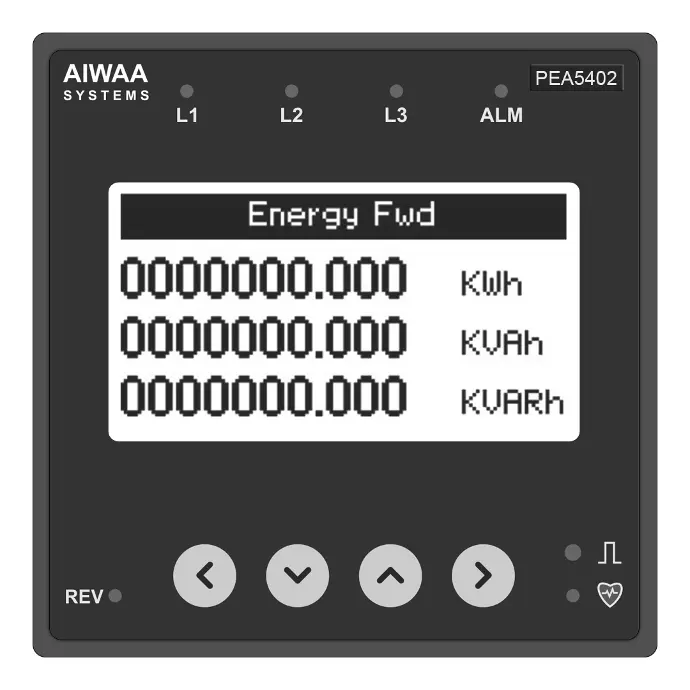

PEA5402

Prod. Code: PEA5402P1100100000

Class 1.0, MFM, RTC, Demand, Rate Values, Max/Min Values, THD, TOHD, TEHD, Individual Harmonics upto 15th order, RS485

Aux: 80-300 Vac/100 to 300 Vdc​


Data Sheet   User Manual   Installation Guide

PEA5402

Prod. Code: PEA5402P3100100000

Class 0.5S, MFM, RTC, Demand, Rate Values, Max/Min Values, THD, TOHD, TEHD, Individual Harmonics upto 15th order, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5402

Prod. Code: PEA5402P5100100000

Class 0.2S, MFM, RTC, Demand, Rate Values, Max/Min Values, THD, TOHD, TEHD, Individual Harmonics upto 15th order, RS485

Aux: 80-300 Vac/100 to 300 Vdc​


Data Sheet   User Manual   Installation Guide

PEA5404

Prod. Code: PEA5404P3100100000

Class 0.5S, MFM, RTC, Demand, Rate Values, Max/Min Values, Incremental Energy &MD, Peak hours Energy &MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 31th order, Phasor, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5404

Prod. Code: PEA5404P5100100000

Class 0.2S, MFM, RTC,  Demand, Rate Values, Max/Min Values, Incremental Energy &MD, Peak hours Energy &MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 31th order, Phasor, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5406

Prod. Code: PEA5404P3100100000

Class 0.5S, MFM, RTC, Demand, Rate Values, Max/Min Values, Incremental Energy & MD, Peak hours Energy & MD, Month wise Day wise Energy & MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 31th order, Phasor, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5406

Prod. Code: PEA5404P5100100000

Class 0.2S, MFM, RTC, Demand, Rate Values, Max/Min Values, Incremental Energy & MD, Peak hours Energy & MD, Month wise Day wise Energy & MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 31th order, Phasor, RS485

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5412

Prod. Code: PEA5412P3100100220

Class 0.5S, MFM, RTC, Demand, Rate Values, Max/Min Values, Incremental Energy & MD, Peak hours Energy & MD, Month wise Day wise Energy & MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 31th order, Phasor, 2DI, 2DO, Alarms, Multi source Energy RS485,

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide

PEA5412

Prod. Code: PEA5412P5100100220

Class 0.2S, MFM, RTC, Demand, Rate Values, Max/Min Values, Incremental Energy & MD, Peak hours Energy & MD, Month wise Day wise Energy & MD, THD, TOHD, TEHD, TDF, TODF, TEDF, KF, CF, Individual Harmonics upto 31th order, Phasor, 2DI, 2DO, Alarms, Multi source Energy, RS485,

Aux: 80-300 Vac/100 to 300 Vdc


Data Sheet   User Manual   Installation Guide
